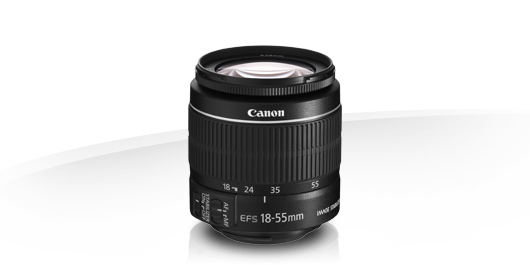

Canon EF-S 18-55mm f/3.5-5.6 IS II

Specifications

Specifications in detail

Optical Features / Specifications

  • Angle of View (Horizontal, vertical, diagonal)

    64º 30' - 23º 20', 45º 30'- 15º 40', 74º 20' - 27º 50'

  • Lens Construction (Elements/Groups)

    11/9

  • Number of Diaphragm Blades

    6

  • Minimum Aperture

    22 - 38(36)¹

  • Closest Focusing Distance (m)

    0.25

  • Maximum Magnification (x)

    0.34 (at 55mm)

  • Distance Information

    Provided

  • Image Stabilizer OIS1

    4-stops

  • AF Actuator

    Micro Motor

Accessories

  • Lens Hood

    EW-60C

  • Lens Case/Pouch

    LP814

  • Magnification with Extension Tube EF12 II

    0.64-0.23¹

  • Magnification with Extension Tube EF25 II

    1.00-0.51¹

Physical Specifications

  • Filter Diameter (mm)

    58

  • Max. Diameter x Length (mm)2

    68.5 x 70

  • Weight (g)

    200

*Maximum number of Hood III/IV attachable. In case of zoom lenses, the maximum number applies to the short focal length

*Maximum number of Hood III/IV attachable. In case of zoom lenses, the maximum number applies to the short focal length

¹ Minimum aperture if using 1/3stop increments

¹ Not compatible at wide angles

¹ Not compatible at wide angles

¹ Minimum aperture if using 1/3stop increments

¹ Not compatible at wide angles

¹ Not compatible at wide angles

  1. Tested under CIPA standards. Lenses released after July 2024 tested under CIPA-2024 standard in the yaw/pitch (+ roll in case of IBIS) directions at maximum focal length, with a specific camera.
  2. Lens dimensions when in retracted state
