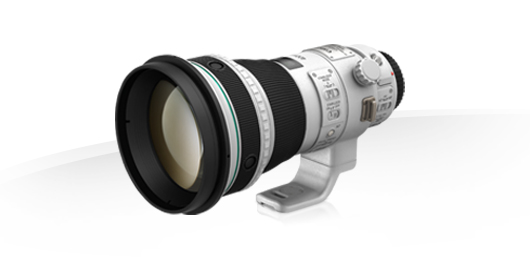

Canon EF 400mm f/4 DO IS II USM

Specifications

Specifications in detail

Optical Features / Specifications

  • 35mm Film Equivalent Focal Length (mm)

    -

  • Angle of View (Horizontal, vertical, diagonal)

    5°10', 3°30', 6°10'

  • Lens Construction (Elements/Groups)

    18/12

  • Number of Diaphragm Blades

    9

  • Minimum Aperture

    32

  • Closest Focusing Distance (m)

    3.3

  • Maximum Magnification (x)

    0.13

  • Distance Information

    Yes

  • Image Stabilizer OIS1

    4 stops

  • AF Actuator

    Ring USM¹

Accessories

  • Lens Cap

    E-145C

  • Lens Hood

    ET-120 (WII)

  • Lens Case/Pouch

    Lens Case 400D

  • Rear End Cap

    Lens Dust Cap E

  • Magnification with Extension Tube EF12 II

    0.17-0.03

  • Magnification with Extension Tube EF25 II

    0.22-0.07

  • Other Accessories

    Canon drop-in 52mm filters

Specifications with 1.4x Extender

  • Maximum Magnification

    0.18

  • AF Possible

    Yes

  • Image Stabilizer

    Yes

Specifications with 2x Extender

  • Maximum Aperture

    5.6-45

  • Image Stabilizer

    Yes

Physical Specifications

  • Filter Diameter (mm)

    52 Drop in

  • Max. Diameter x Length (mm)2

    128 x 232.7

  • Weight (g)

    2100

*Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount.

This in no way effects either the lens or camera performance.

*Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount.

This in no way effects either the lens or camera performance.

*Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount.

This in no way effects either the lens or camera performance.

¹ AF possible with EOS-1 series only and 5D Mark III with firmware 1.2.1

² IS will not work with the following cameras EOS-1, EOS 5, EOS 100, EF-M, EOS 1000/F/n/Fn, EOS 700, EOS 10, EOS RT, EOS 600/630, EOS 850, EOS 750, EOS 620, EOS 650

¹ AF Full Time Manual Focus

¹ AF possible with EOS-1 series only and 5D Mark III with firmware 1.2.1

² IS will not work with the following cameras EOS-1, EOS 5, EOS 100, EF-M, EOS 1000/F/n/Fn, EOS 700, EOS 10, EOS RT, EOS 600/630, EOS 850, EOS 750, EOS 620, EOS 650

¹ AF Full Time Manual Focus

¹ AF possible with EOS-1 series only and 5D Mark III with firmware 1.2.1

² IS will not work with the following cameras EOS-1, EOS 5, EOS 100, EF-M, EOS 1000/F/n/Fn, EOS 700, EOS 10, EOS RT, EOS 600/630, EOS 850, EOS 750, EOS 620, EOS 650

¹ AF Full Time Manual Focus

  1. Tested under CIPA standards. Lenses released after July 2024 tested under CIPA-2024 standard in the yaw/pitch (+ roll in case of IBIS) directions at maximum focal length, with a specific camera.
  2. Lens dimensions when in retracted state
